Leading Provider of Automatic Weighing Equipment
-
Hopper Volume
-
Max. Speed
-
Single Weigh
-
Average Tolerance
Leading Provider of Automatic Weighing Equipment
Hopper Volume
Max. Speed
Single Weigh
Average Tolerance
| Series | Weighing and Labeling Machine |
| Model | AC-7E |
| Weighing Range | 1kg |
| Printing Resolution | 305dpi |
| Printing Width | 104mm |
| Printing Speed | Max. 300mm/s |
| Printing Mode | Thermal direct |
| Printing Size | Inner diameter: 38/76mm; Outer diameter: Max.250mm |
| Labeling Mode | Push arming+blowing mode |
| Display | 12.1" color touchscreen |
| Weighing Belt Dimensions | 350 x 220mm |
| Label Size | W30x30-100x100mm |
| Label Speed | 45 packages/min |
| Barcode Versions | EAN13,CODE128,CODE39, ITF, OR-CODE |
| Main Voltage | 220V/50-60Hz |
| Humidity | 35-85% (non-condensation) |
| Operating Temperature | -10°C～40°C |
| Conveyor Size | L1630 x M220 x H780mm |
| Belt Width | 220mm |
| Notes | Belt size and weight range can be optional according to actual products. Accuracy is finally decided by product size, speed and weight. |
It is used to check whether the weight of individual products corresponds to the set target,and to automatically reject substandard products by means of a sorting device.
Discover
It is used to check whether the weight of the product matches the target weight, while the automatic selection device picks out the unqualified products.
Discover
Used to check that the weight of the product matches the target weight, and to select non-con-forming products by means of an exclusion device. Improve efficiency and profitability with check weighers that also offer superior accuracy and advanced functionality with standard systems in food, personal care and pharmaceutical applications. Widely used for a wide range of packaging products such as cartons, bags, cups, bottles, cans, pouches and boxes.
Discover
It is used to check whether the weight of the product corresponds to the target weight,while the exclusion device selects the non-conforming product.
Discover

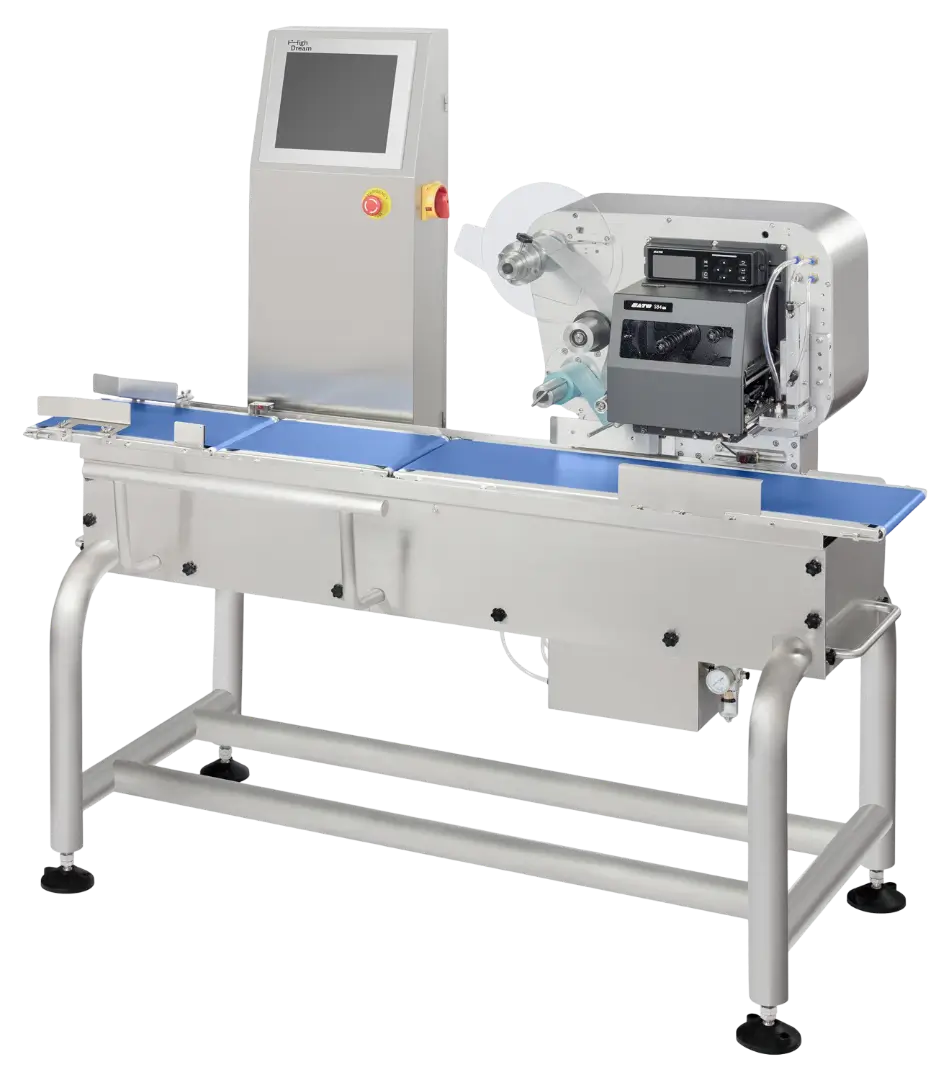

The AC-7E weighing and labeling machines is designed for fully automatic weighing and labeling of pre-packaged items. With its compact, space-saving body design and modular structure, it is easier to configure to meet the product and capacity requirements of retail, trade and industry.
Discover
Suitable Applications: Dynamic Security Barcode, Food Packaging, Furniture and wood, GS1 Data Matrix, Data Matrix Code, Multi-dot Font, Multi-group Printing, Packing Carton, PET Plastics, Product Standard Number
Discover
This equipment is used to check whether the weight of individual products corresponds to a preset standard and to automatically reject products that do not meet the standard by means of a sorting rejector.
Discover
The AC-7G weight sorter is widely used in fishery and seafood, poultry and meat, vegetables and fruits, medicinal materials, herbs, hardware, plastics, chemical materials and so on. It can check the weight of each product efficiently and classify it to the specified weight grade or weight category automatically, replace manual sorting, achieve product standardization,and increase sorting speed.
Discover
It is mainly suitable for multi-stage sorting of seafood, livestock and poultry, aquatic products,agricultural and sideline products.
Discover
