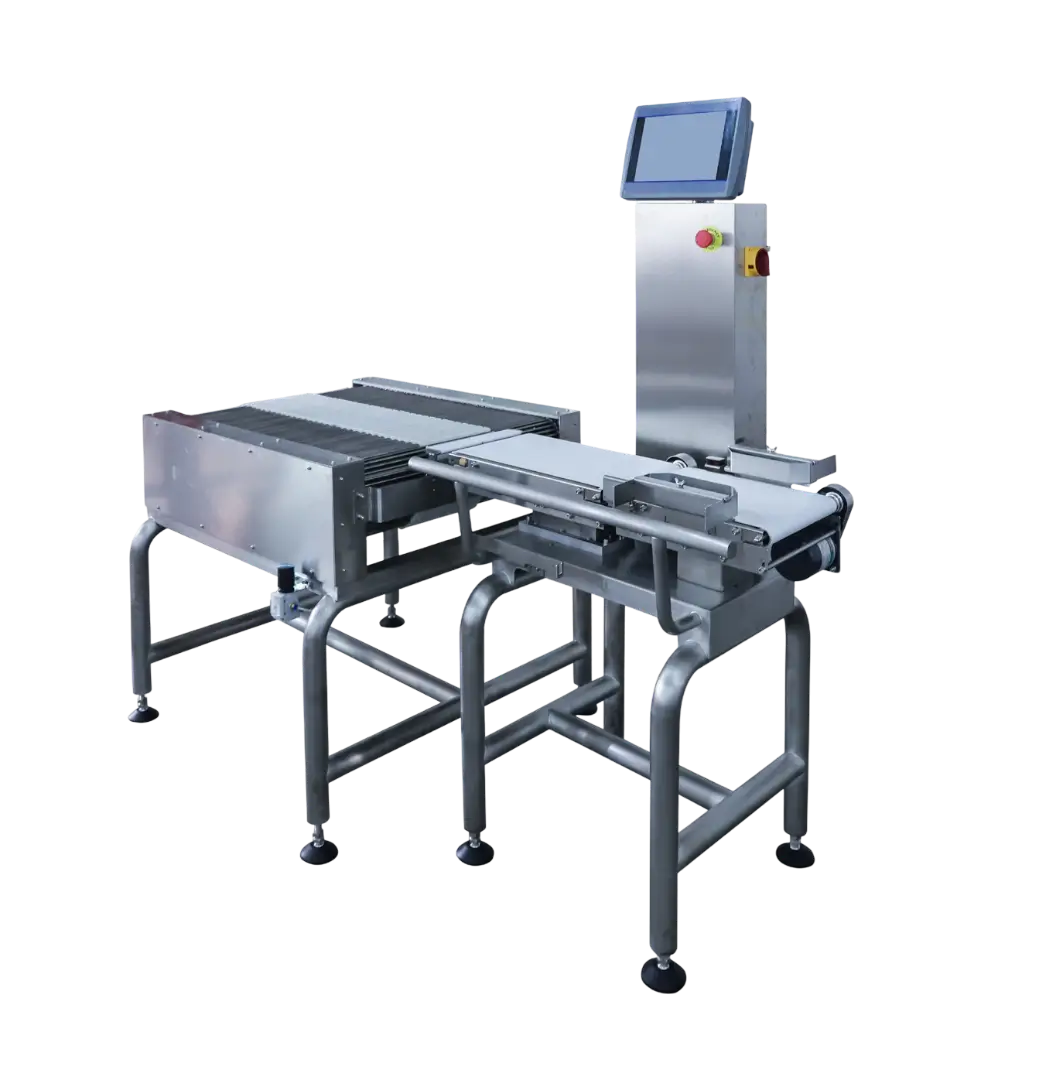

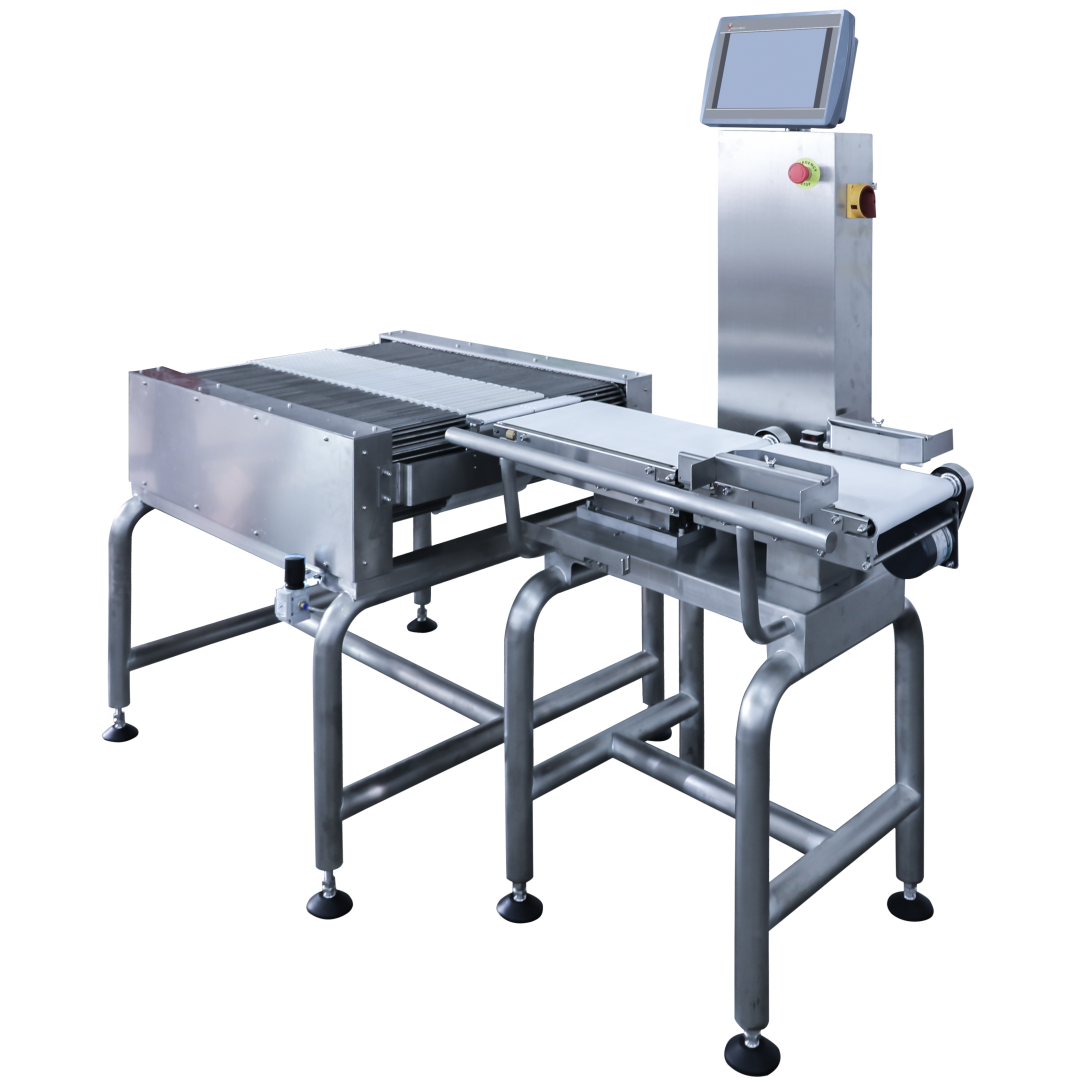

| Series | Check Weigher with Sorting Rejector |
| Model | AC-7C |
| Weighing Range (Optional) | 5-1000g |
| Weighing Speed (Adjustable) | 60-80bags/min |
| Weighing Accuracy | +0.5-1g |
| Belt Width | 220mm |
| Middle Weighing Belt Size | W220xL450mm |
| Minimum Scale (Fluctuation) | 0.1g |
| Data Output | USB/ Network |
| Preliminary Program | 100 set |
| Communication Protocol | Modbus TCP |
| NW/GW | 150kg/270kg |
| Air Requirements (Reference) | 0.3-0.6mpa |
| Eliminate Optional Device | Sorting device(belt width 150mm) |
| Voltage | Single phase, 220V, 50/60Hz |
| Power | 300W |
| Notes | Belt size and weight range can be optional according to actual products. Accuracy is finally decided by product size, speed and weight. |
Our Multihead Weigher Super Precision Micro Model can weigh and count fine and small products - such as Marijuana, tea, spices, herbs, tablets, capsules, dried vegetable. Weight measures as low as 0.01g, target weights as low as 0.5g, accuracy as low as 0.03g.
Discover
Built-in report statistics, can automatically generate a variety of real-time data reports in EXCEL format, statistics on the individual weight and total weight of each discharge port,to master the production status at any time
Discover
Specifications Series Auger Filler Model AC-13A Weighing Range 10-5000g The Maximum Diameter Screw 80mm Weighing Accuracy ±1% Weighing Speed 5 - 60 bags/min Preliminary Program 10set Machine Dimension L800x W580xH2080mm Notes Accuracy is finally subjected to packing type, packing size, speed and weight.
Discover
Memory Hopper 24 Heads Multihead Weigher uses memory hoppers to double the combinations. And its compensation function ensure the accurate proportion of mixing. Suitable for weighing granule, slice, roll or irregular shape materials.
