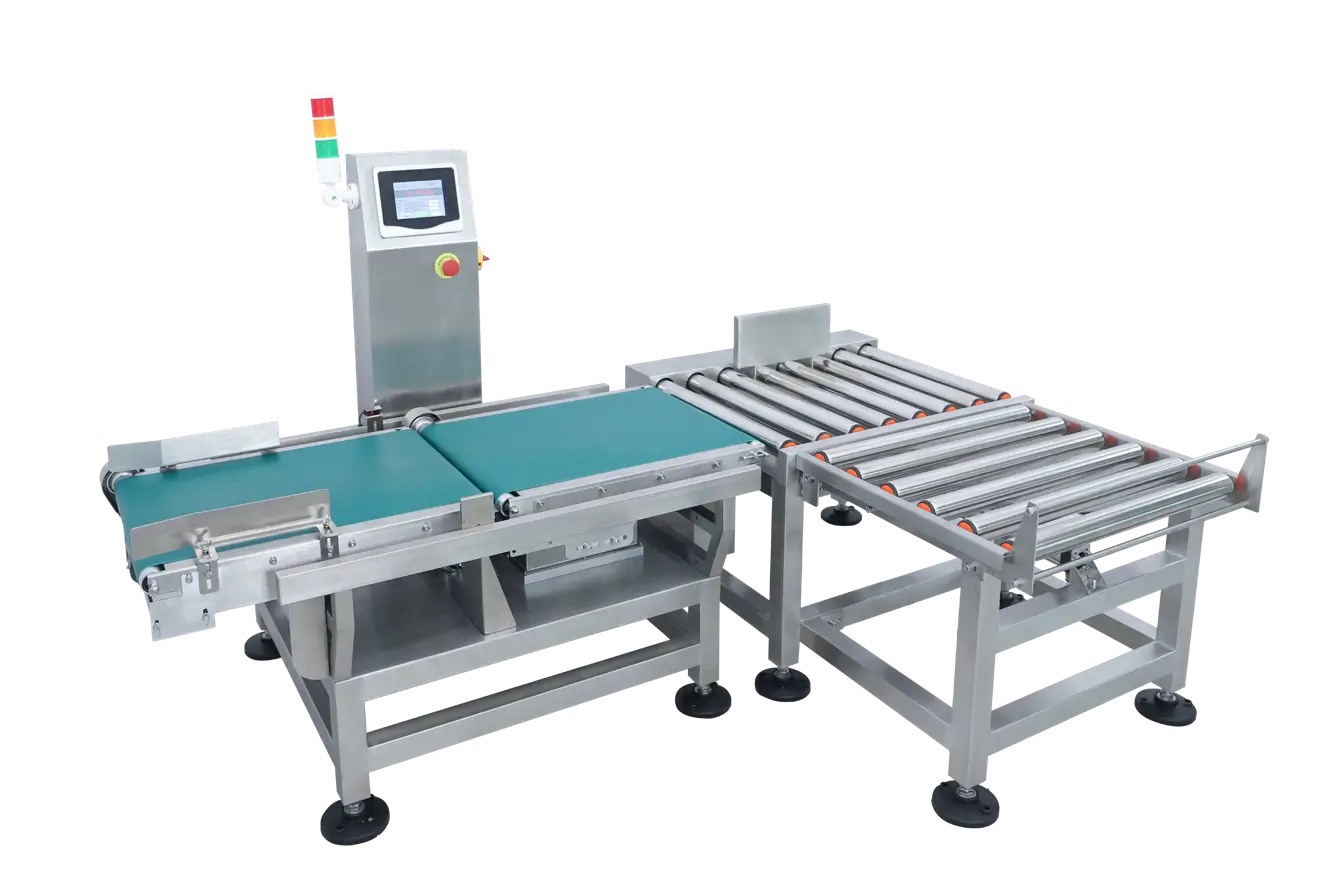

| Series | Check Weigher |
| Model | AC-7HS |
| Weighing Range (Optional) | 0.01kg -30kg |
| Weighing Speed (Adjustable) | 10 - 50bags/min |
| Weighing Accuracy | ±2-10g |
| Belt Width | 430mm |
| Middle Weighing Belt Size | W430*L600mm |
| Minimum Scale (Fluctuation) | 1g |
| Data Output | RS232/USB |
| Preliminary Program | 100 set |
| NW/GW | 300kg/380kg |
| Air Requirements (Reference) | 0.4-0.6mpa |
| Optional Eliminate Device | T-pusher rejector |
| Voltage | Single phase, 220V, 50/60Hz |
| Power | 300W |
| Notes | Belt size and weight range can be optional according to actual products. Accuracy is finally decided by product size, speed and weight. |
Freefall type metal detectors are suitable for installation at the bottom of multihead weighers, vertical packaging machine inlets, drop pipes and other free-falling environments, and can be used to detect a variety of powders, bulk materials and flakes.
Discover
Memory Hopper 24 Heads Multihead Weigher uses memory hoppers to double the combinations. And its compensation function ensure the accurate proportion of mixing. Suitable for weighing granule, slice, roll or irregular shape materials.
Discover
It is used to check whether the weight of individual products corresponds to the set target,and to automatically reject substandard products by means of a sorting device.
Discover
Multihead Weigher for Noodle-like products have sets of load cells and hoppers, which work together to weigh and dispense the product into packaging or containers. For delicate and lengthy products, the weigher allows them to be dispensed up to 300 mm amplitude thanks to its strong linear feeder.
