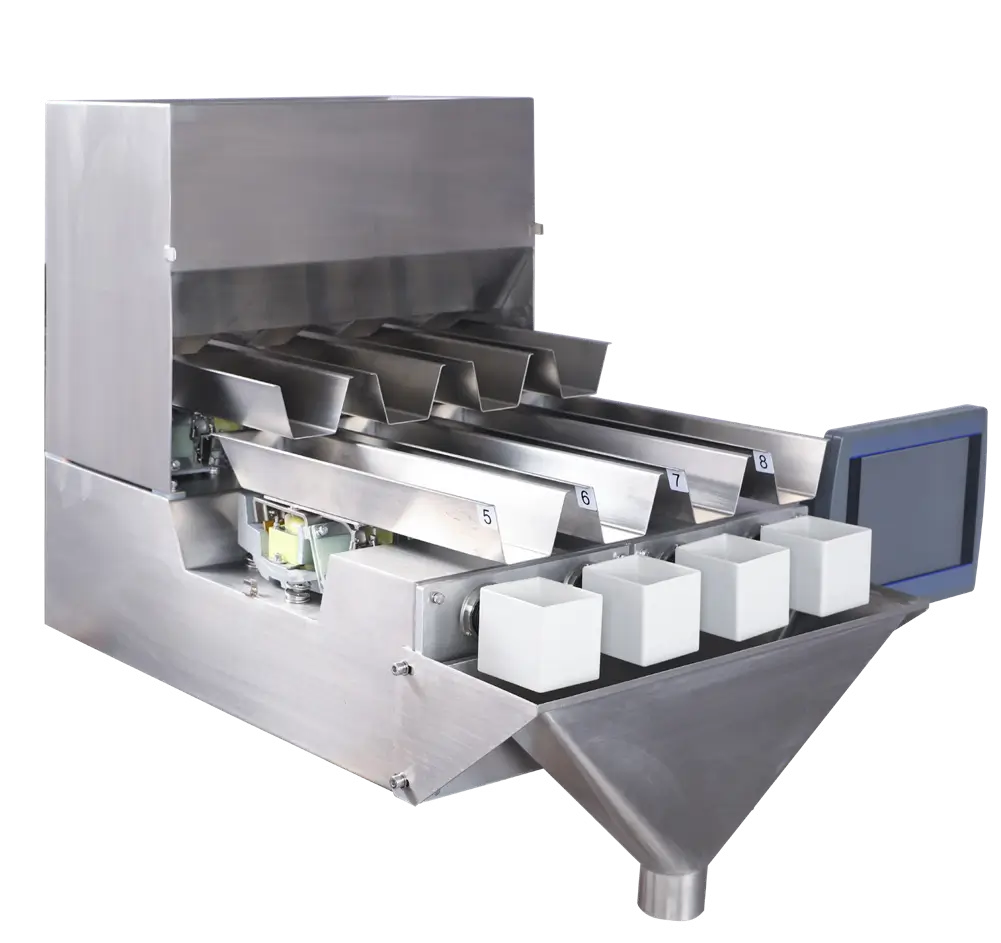

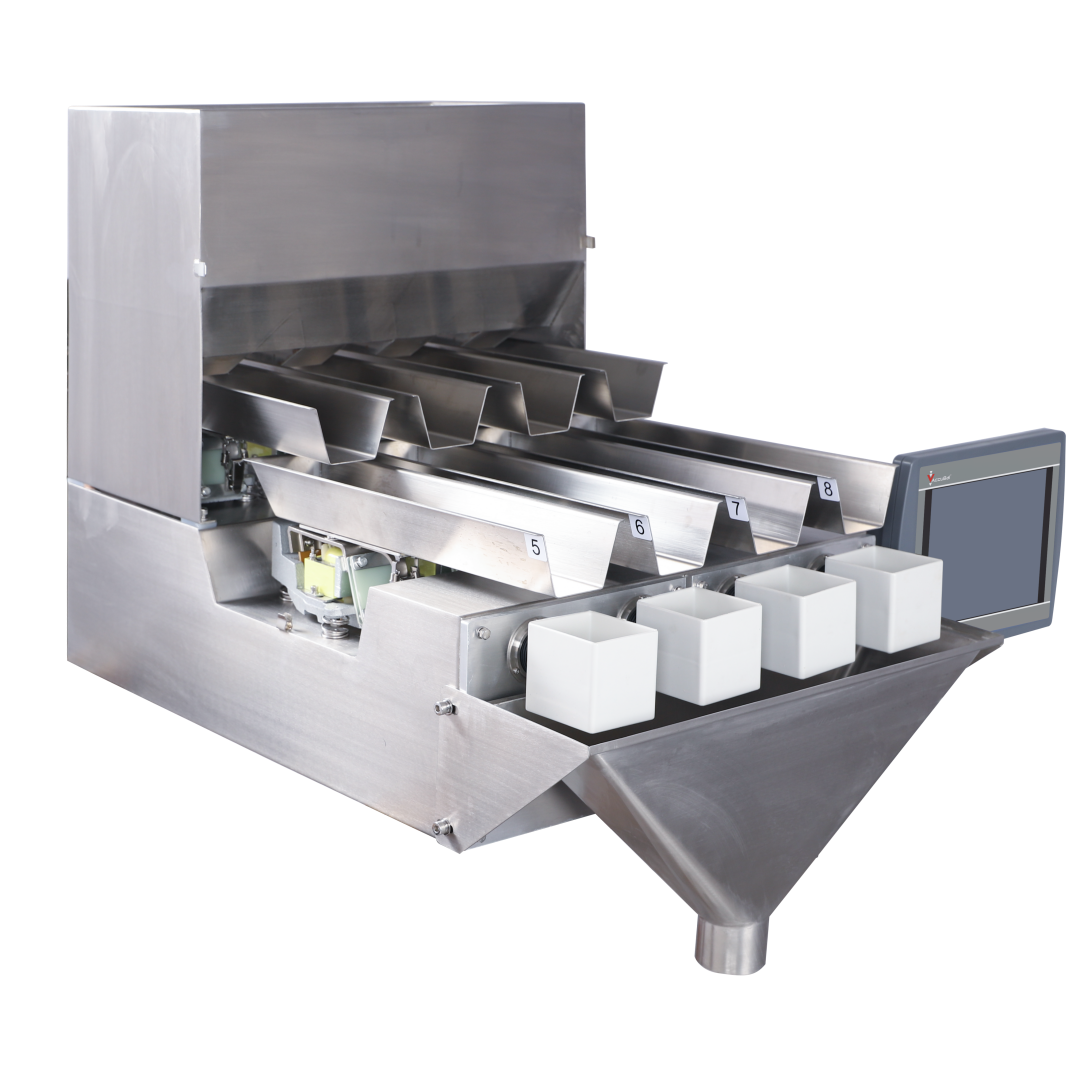

Small 4 Head Linear Weigher ACZ-B

Linear weighers are specially designed to perform metering tasks in quantitative packaging. where the metering process includes automatic feeding, metering and discharging.
  • 10.4-inch touch screen with multiple language options Separate motor drive for each hopper for ease of maintenance
  • Easy to operate with dual vibration linear feeders
  • Controlled by SCM system
  • Initial weight calibration and subsequent
  • Automatic calibration
  • 20 product parameters, different target weights can be set to mix different products
  • Suitable Applications: It is suitable for the packaging of granular commodities with poor flow ability in the fields of food, medicine and chemical industry, such as peanuts, melon seeds, sugar, monosodium glutamate, feed and granular additives.
Contact Us

  • Hopper Volume

  • Max. Speed

  • Single Weigh

  • Average Tolerance

Specifications

  • Series Small 4Head Linear Weigher
    Model ACZ-B
    Weighing Range 5-100g
    Weighing Accuracy ±0.1-1g
    Weighing Speed 15 - 60bags/min
    Preliminary Program 20set
    Data Output USB
    Machine Dimension L1100 x W790 x H450mm
    NW/GW 117/167kg
    Weighing Bucket Number 4units(0.25L/unit)
    Power Single phase, 220V,50/60Hz
    Notes Parameters are finally decided by the type of product,weight and speed.
