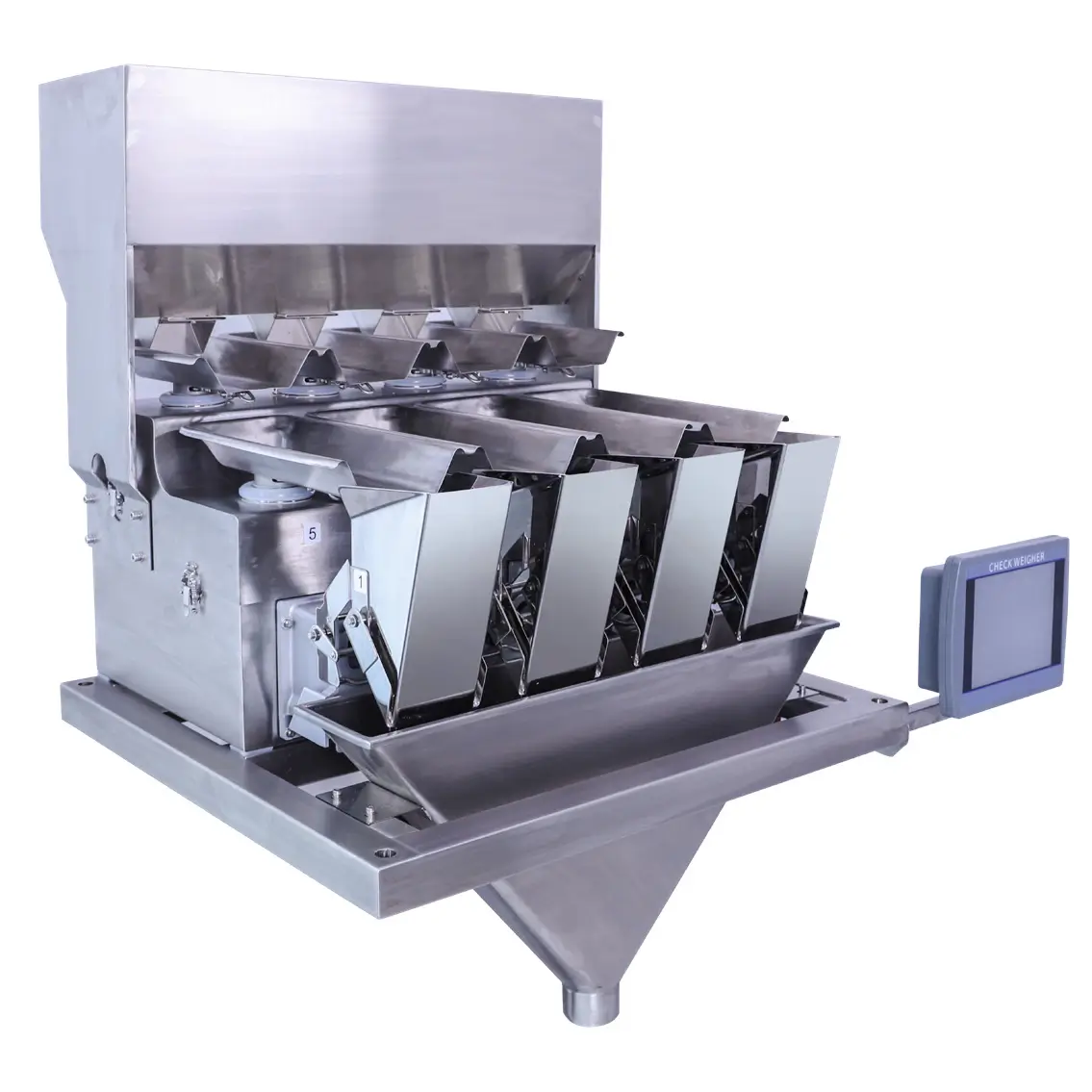

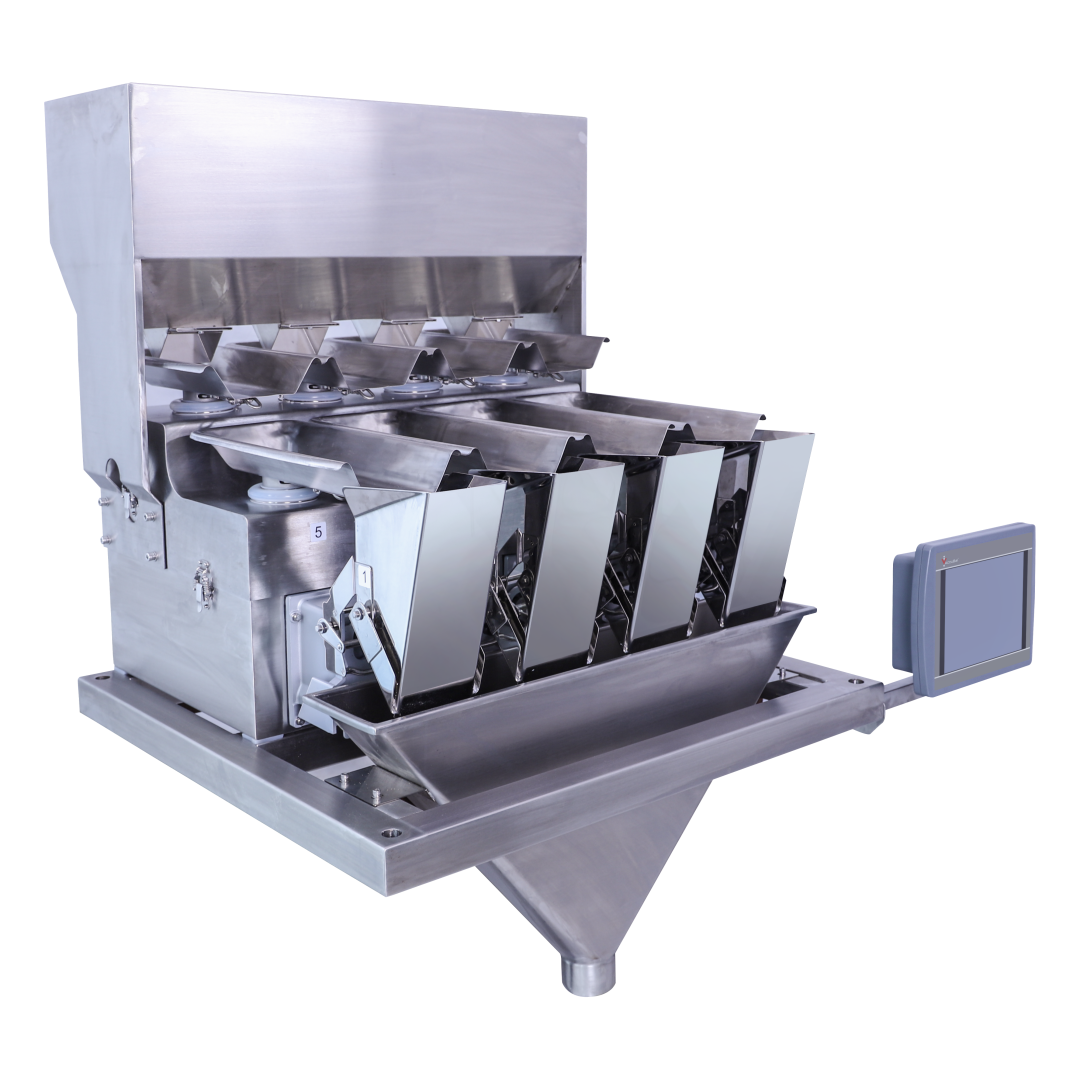

4 Head Linear Weigher ACZ-A

  • 10.4-inch touch screen with multiple language options
  • Separate motordrive for each hopper for ease of maintenance
  • Easy to operate with dual vibration linear feeders controlled by SCM system
  • Initial weight calibration and subsequent automatic calibration
  • 20 product parameters, different target weights can be set to mix different products
  • Data can be saved in Excel format
  • Suitable Applications: It is suitable for the packaging of granular commodities with poor flow ability in the fields of food,medicine and chemical industry, such as peanuts, melon seeds, sugar, monosodium glutamate, feed and granular additives.
Contact Us

  • Hopper Volume

  • Max. Speed

  • Single Weigh

  • Average Tolerance

Specifications

  • Model ACZ-A
    Welghing Range 5g- 1000g(optional)
    WeighingAccuracy +1-3g
    Weighing Speed 5- 40 bags/min
    Weighing Speed 20set
    Data Output USB
    Weighing Bucket Number 4units (24L/unit)
    Weighing Bucket Number Single phase, 220V, 50/60Hz
    Notes Accuracy is finallydecided by product size, speed and weight.
