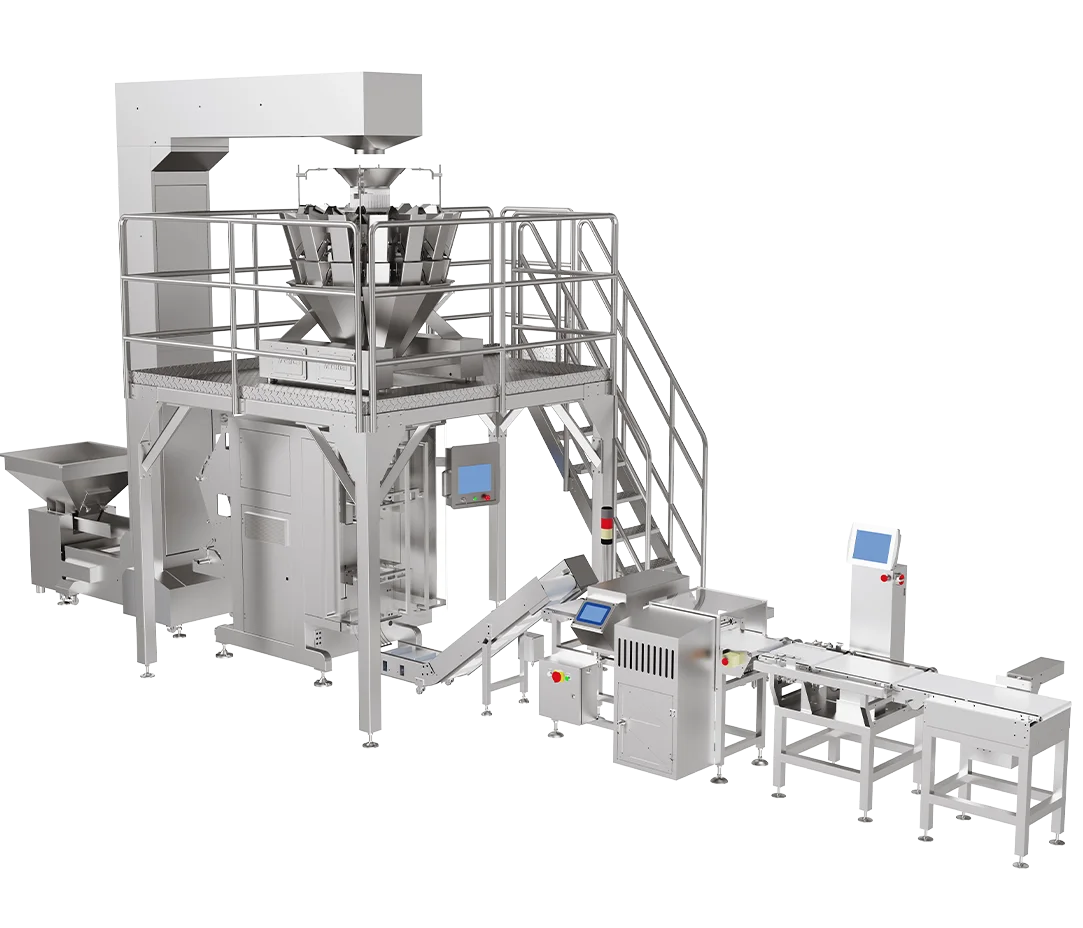

Packaging Line Solutions

  • Feeding: Vibratory Feeder
  • Elevating: Bucket Elevator
  • Packaging Option:

      --Continuous Motion Vertical Packaging Machine

      --Rotary Premade Pouch Packaging Machine

  • Conveying：

      --PU Belt Conveyor

      --Take-away Conveyor

  • Collection: Collecting Table
  • Supporting Equipment: Platform
Contact Us

  • Features of the Packaging Line Solution

      • Seamless Line Integration
        From feeding and conveying to weighing, packing, and inspection, all equipment is designed and integrated into one complete system to minimize integration risks and ensure smoother operation.
      • Better Overall Value
        One integrated solution helps reduce costs associated with multi-supplier coordination, engineering integration, installation, and commissioning, delivering better overall value.
      • Faster Production Launch
        Unified line design, testing, and commissioning help shorten installation time and enable a faster, more predictable production start-up.
      • Simplified Management
        From system planning and installation to commissioning and after-sales support, one supplier manages the entire line, reducing coordination efforts and improving project efficiency.

Specifications

  • Vibratory Feeder
  • Bucket Elevator
  • Packaging Machine Options 1
  • Packaging Machine Options 2
  • Conveyor Options 1
  • Conveyor Options 2
  • Rotary Collecting Table
  • Working Platform

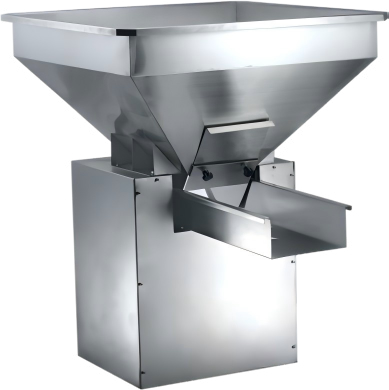

  • The feeder adopts an electromagnetic drive system to transfer materials to the buckets of the bucket elevator through vibration, enabling fully automatic operation.



    Feeding  Vibratory Feeder
    Frame Material 304 Stainless Steel
    Hopper Volume 150L
    Conveying Capacity 0-4.0m³/h
    Power Supply 220V 1P 50 Hz
    Packing Dimensions & Gross Weight L1050 x W1480 x H970mm, 150kg

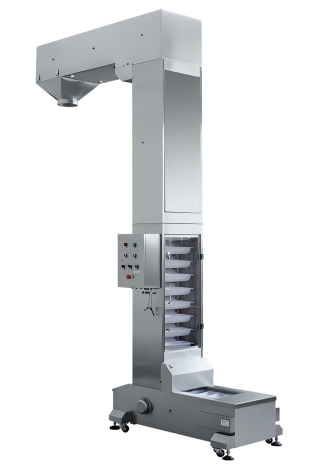

  • The conveyor is made of SUS304 stainless steel with food-grade polypropylene (PP) buckets.

    Automatic start/stop sensor control is provided for feeding products from the hopper to the weigher.



    Elevating Bucket Elevator
    Bucket Volume 2L/4L
    Overall Height 3896mm
    Discharge Height 3256mm
    Conveying Speed 10m-12m/min
    Bucket Material Food-grade plastic bucket
    Power Supply 3P 380V/220V,50Hz/6OHz,075KW
    Packing Dimensions & Gross Weight L2150 x W1500 x H1230mm,530kg

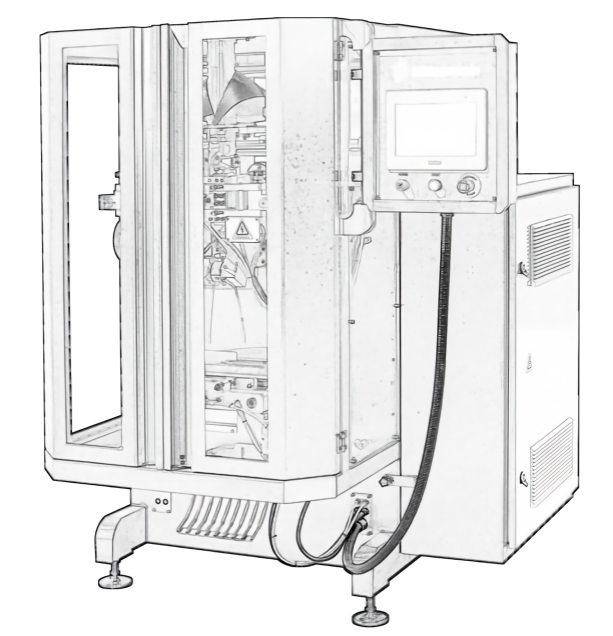

  • -Continuous Reciprocating Sealing Jaws

    -Servo Motor Controlled Film Pull Belts

    -Dual Servo Controlled End Seal Drive

    -Color Touchscreen Operator Interface

    -PLC Control System

    -Instant Product/Program Changeover

    -Quick-Change Former Assembly (No Tools)

    -Former Assembly (One)

    -Mechanical Film Unwind

    -Safety Guarding interlocks

    -CE-Compliant Electrical System



    Packing Machine Continuous Motion Vertical Packing Machine
    Sealing Jaws Motion Continuous reciprocating
    Film Width 130-510mm
    Bag Length 50-300mm
    Speed Max.180bpm
    Power Supply 380V, 50/6OHz,9KW
    Air Requirement 0.5m³/min, 0.6Mpa
    Outer Dimension 1810x 1310x1680mm

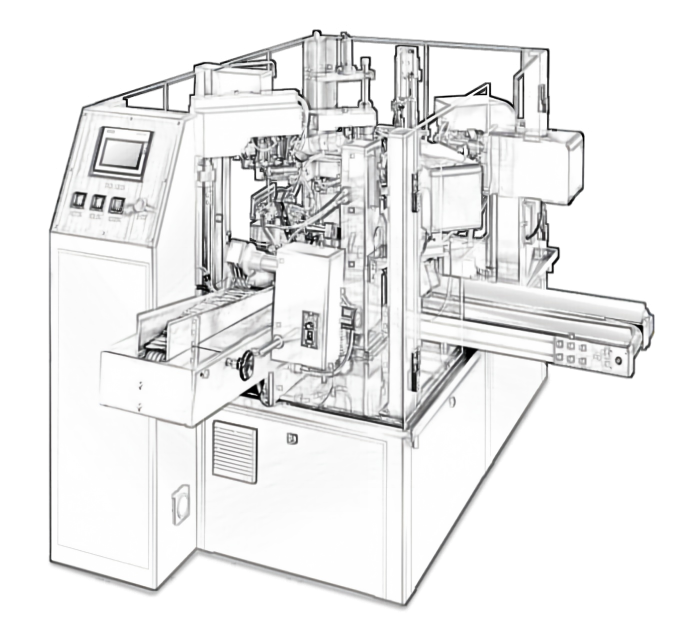

  • -Suitable for large bags, with automatic weighing, filling, and sealing

    -The advanced bag feeding system ensures a high bag-feeding success rate

    -The advanced machine design ensures stable operation, reduces product rejects, and extends equipment service life

    -High-quality accessories are used to ensure the lasting stability of the machine

    -The machine uses premade bags to provide attractive package appearance, high vacuum, and reliable sealing quality, helping improve product quality and presentation

    -Advanced PLC plus POD control system with a user-friendly touchscreen HMI for easy operation



    Packing Machine Rotary Premade Pouch Packing Machine
    Bags Size Width: 80 -200 mm
    Length: 100 – 350 mm
    Film Volume 10-2500g (Depending on the type of products)
    Capacity 30 – 40 bags/min
    Speed Max. 180 bpm
    Power Accuracy Error ≤±1
    Total Power 6.9 kW (220V/380V, 3PH, 50Hz/60Hz)
    Air Requirement ≥0.6m3/min supply by user
    Overall Dimension L2500 x W1460 x H1400 mm
    Pouch Type Suitable for all types of heat-sealable
    premade pouches, including side-seal pouches, block-bottom bags, zip-lock resealable pouches, and stand-up pouches with or without spouts.

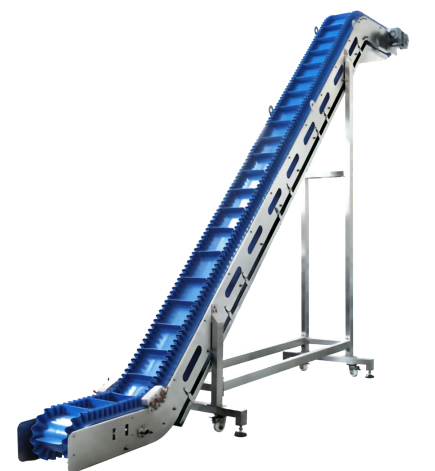

  • The conveyor is made of a 304 stainless steel frame and a food -grade PU belt. It is durable, resistant to deformation, and suitable for high and low temperature environments.

    The conveyor is easy to install and disassemble, and the belt can be washed directly with water.



    Conveyor PU Belt Conveyor
    Overall Belt Width 450mm
    Effective Belt Width 230mm
    Center Baffle Height 70mm
    Discharge Height 3500mm
    Infeed Height 435mm
    Conveying Speed 20m-25m/min
    Belt Material Food-Grade PU Belt
    Power Supply 3P 380V/220V,50Hz/6OHz
    Packing Dimensions & Gross Weight L7350 x W1000 x H1400mm, 820kg

  •

    Conveyor Take-away Conveyor
    Frame Material 304 Stainless Steel
    Belt Width 200mm, 300mm, 400mm
    Belt Material Food-grade plastic

  •

    Collecting Equipment Rotary Collecting Table
    Overall Height 836mm
    Deck Diameter Φ1200mm
    Machine Material 304 stainless steel

  •

    Name Working Platform
    Material 304 Stainless Steel
    Size L2000 x W2000 x H1800mm
    Custom design available Custom design available
