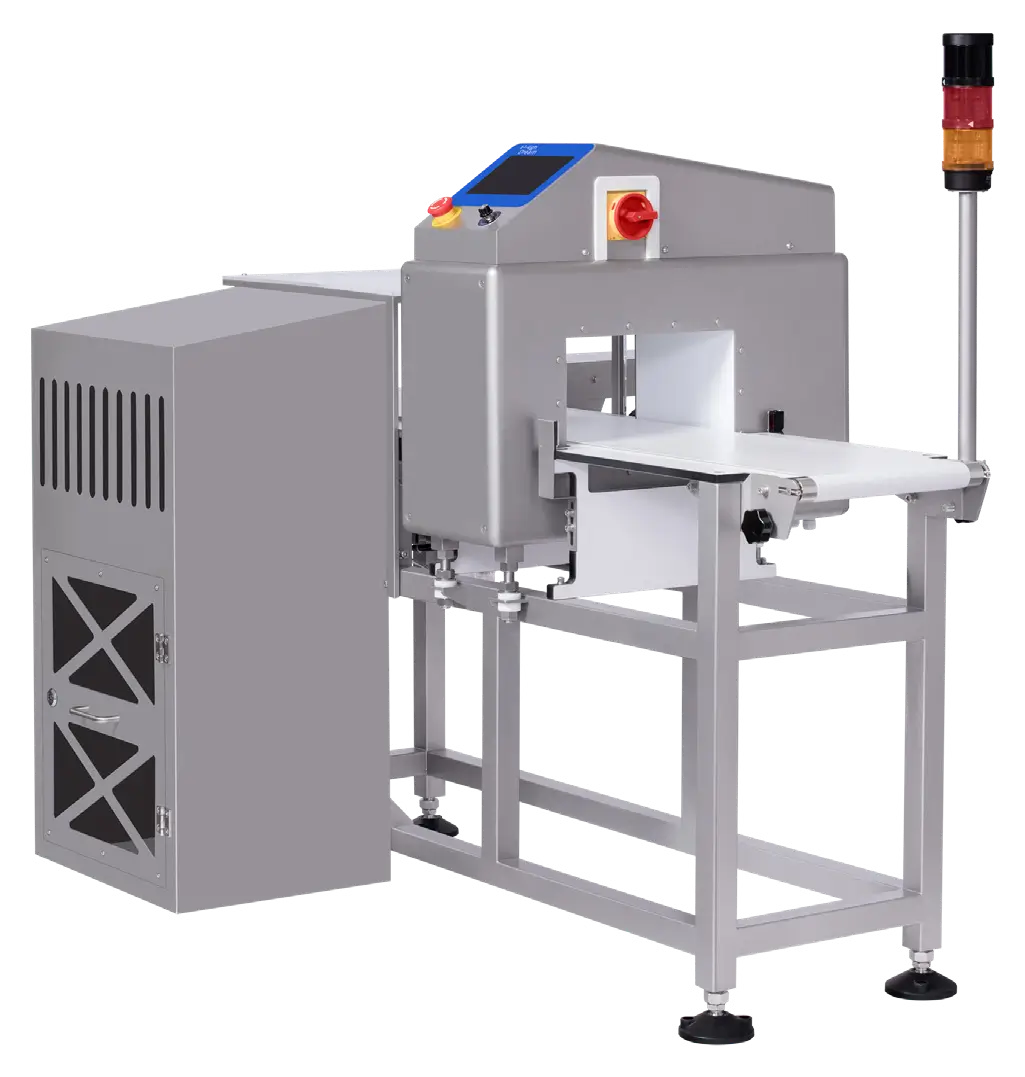

| Series | Conveyor Belt Type Metal Detector |
| Model | AC-RCB |
| Tunnel Size | W350mm xH175mm |
| Passing through Area | W300mmxH135mm |
| Detecting Sensitivity | FE Φ0.8mm, SUS Φ1.8mm |
| Belt Width | 310mm |
| Conveyor Belt Speed | 10-45m/min |
| Transmission Capacity | Max 5kg |
| Power | Single phase,220V, 50/60Hz,300W |
| Dimension | 1531.7*1199.3*1357mm |
| Optional Rejecting Device | Air blow/ Pusher/ Flipper |
| Note | When machine detects different products, it will have different sensitivity. The final sensitivity on your product depends on product effect, working environment and place of metal. |
Conveyor belt type metal detector can effectively avoid the product effect and external interference,can be adapted to push rod, blowing. pulling arm and other automatic exclusion mechanism, to realize the on-line automatic detection, widely used in food, medicine, chemical industry textile and other industries for the detection of metal impurities in products.
Discover
AC-MDC Series is a combined system of metal detector and check weigher. It can exclude products with metal contaminants, and exclude products whose weight does not meet the requirements at the same time, which is the best solution for metal foreign object detection and weight detection. Its structure is compact, and simple to maintain.
Discover
Inclined Metal Detecto AC-RMB C, with automatic rejecting device, has 7-inchtouchscreen. The odular belt, is easy to clean.
Discover
AC-RFFSeries,7-inchtouchscreen,Modular belt, easy to clean,With adjustable guiding rails
Discover
Freefall type metal detectors are suitable for installation at the bottom of multihead weighers, vertical packaging machine inlets, drop pipes and other free-falling environments, and can be used to detect a variety of powders, bulk materials and flakes.
Discover
Modular belt type metal detector is used for detecting metal impurities, well connected to the production line via signal inputs and outputs. The combined belt is easy to clean,conveys heavy materials and is suitable for wet and dry products.
