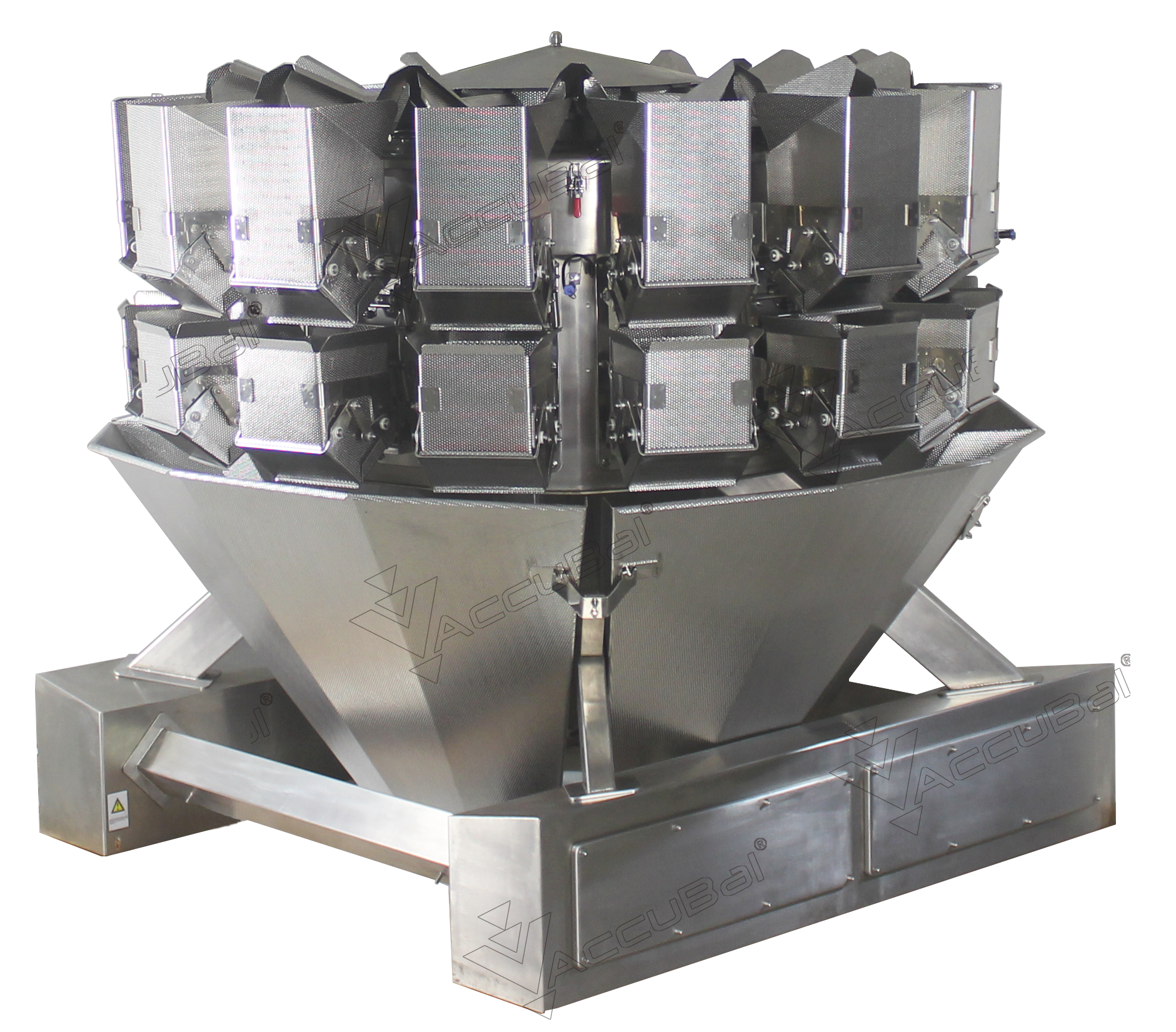

Multihead Weigher Large Volume Model-10 Heads 5.5L

  • Hopper Volume: 5.5L
  • Max. Speed: 40BPM
  • Single Weigh: 100g-4000g
  • Average Tolerance:±3g
Contact Us

  • Hopper Volume

    5.5L

  • Max. Speed

    40BPM

  • Single Weigh

    100g-4000g

  • Average Tolerance

    ±3g

  • Features of the Multihead Weigher
    Large Volume Model-10 Head 5.5L

        • With Anti-condensation device and 5.5L hopper, it can weigh heavy, capacious, damp products.
        • Speed of main vibration and amplitude can be dynamically adjusted by display.
        • Upgraded mainboard, updated automatic programs and HMI-friendly (Human Machine Interface) connection with USB, PC network.
        • Wide angle cameras help monitor materials status easily and clearly.
        • IP65 waterproof, easy for maintenance and use.
        • Interchangeable and advanced Analog to Digital.

Specifications

  • AB-E10-2B-21
  • Hopper No. 10
    Actuator Housing Stainless steel
    Collating Chute Independent Chute
    Max. Weighing Speed (WPM) 40BPM
    Average Tolerance ±3g
    Hopper Volume 5.5 L
    Max.Single Discharge 11 L
    Single Weigh 100g-3000g
    Single Max Length ≤130mm
    Water Proof IP64/IP65 Optional
    Preset Number Program 99
    Display 10.4 inch TFT colour screen
    Power Single AC 220±10%; 50Hz; 2.5KW


Versatile in Solutions

Loose or leafy objects such as Mix salads, been sprouts and frozen objects such as potato chips.

  • Biscuits

  • Potato Chips

  • Confectionery

  • Rice

  • Pasta

  • Cheese

  • Pet Food

  • Biscuits

  • Potato Chips

  • Confectionery

  • Rice

  • Pasta

  • Cheese

  • Pet Food

  • Biscuits

  • Potato Chips

  • Confectionery

  • Rice

  • Pasta

  • Cheese

  • Pet Food
